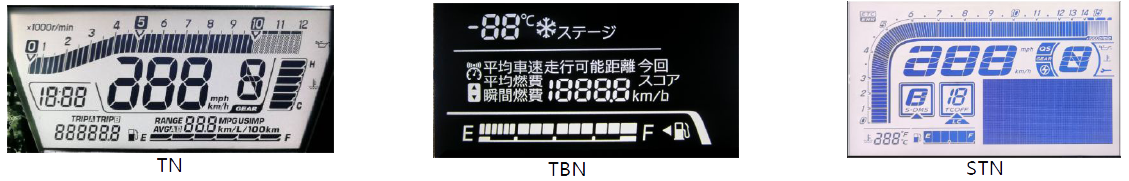

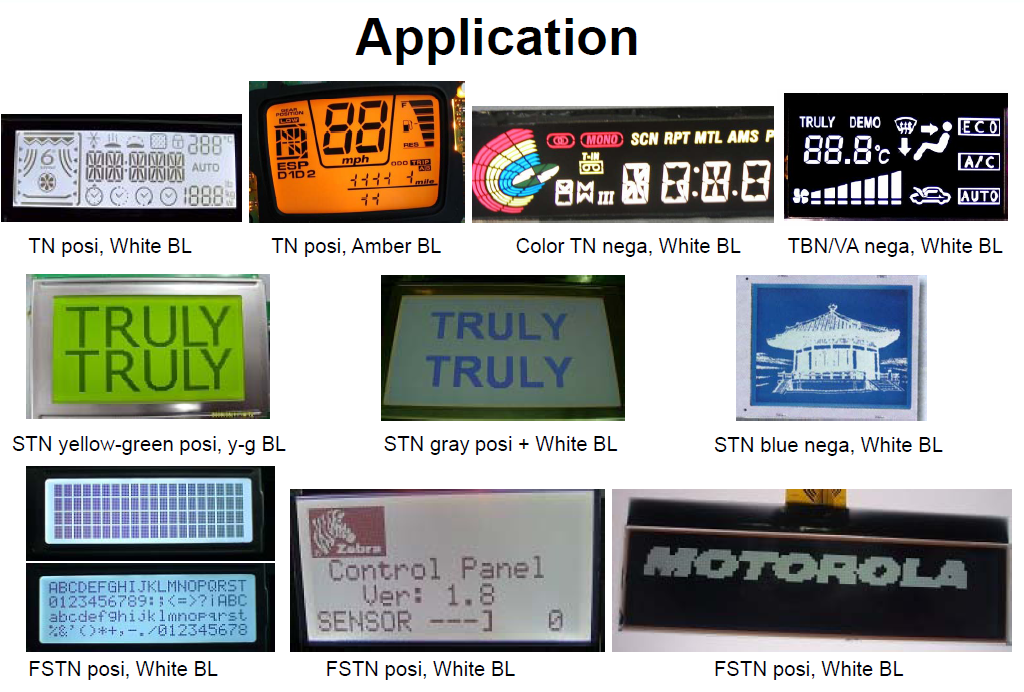

All Display Technologies: Including TBN, CSTN, Mono-TFT, Total reflection TFT, LTPS display, EWD electric wetting display, OLED, AMOLED, Flexible OLED and other products.

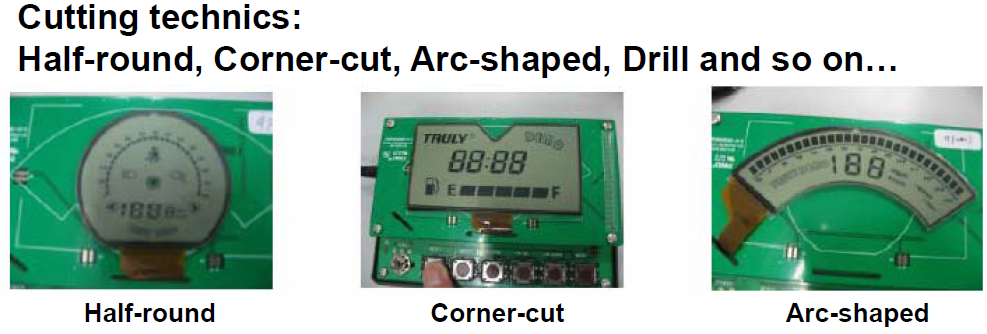

Customizable: Square, round, shaped, drilled.
Widespread applications: Including all small and medium size products - smart phones, smart wearables, automotive, medical, industrial and IoT field.

G2.5 TFT

TWVA+： full viewing angle  •  TF: TransFlective  •  RF: Reflective  •  ULP: low power consumption
Gen Size(Inch) Resolution Display Mode Color Shape IF IC CR Brightness
G2.5 0.96 80RGBx160 TWVA+ 262K Rectangle SPI ST7735S 500Min 400Min 500Typ
1.2 80RGBx160 TWVA+ Rectangle MCU, SPI ST7735S 300Min 300Min 400Typ
1.38 220RGBx220 TN Circle MCU HX8367 300Min /
1.93 220RGBx176 TN Rectangle MCU, SPI R61505 300Min /
2 176RGBx220 TN MCU HX8340 300Min /
2 240RGBx320 TF,TN MCU HX8347 35Min /
2 240RGBx320 TF,TN MCU HX8363 60Min /
2.1 320RGBx320 TWVA+ Circle RGB, MIPI,SPI ST7796H 300Min 390Min 480Typ
2.2 240RGBx320 TF,TN Rectangle MCU，RGB，SPI ST7789V 35Min 190Min 240Typ
2.2 320RGBx240 TN RGB,SPI ILI9342 300Min /
2.2 240RGBx320 TWVA+ MCU，RGB，SPI ST7789 300Min /
2.36 320RGBx240 TN MCU，RGB，SPI HX8368 300Min /
2.42 240RGBx400 TWVA+ RGB,SPI ST7793 600Min /
2.45 128RGBx128 TN SPI ST7735 300Min /
2.6 240RGBx400 TWVA+ MCU，RGB，SPI ST7793 400Min /
2.75 240RGBx400 TWVA+ MCU ST7793 300Min 260Min 320Typ
2.81 240RGBx400 TWVA+ MCU，RGB，SPI ST7793 400Min /
2.83 240RGBx320 TF,TN MCU, SPI R61505 40Min /
3 320RGBx480 TWVA+ MCU，RGB，SPI ST7796 400Min /
3.2 240RGBx320 TF,TN MCU，RGB，SPI ST7789V 50Min 120Min 160Typ
3.3 320RGBx480 TN 16M MCU，RGB，SPI HX8357 300Min /
3.5 480RGBx640 TN 16.7M RGB HX8363 40Min /
3.5 240x320 RF,TN MONO MCU S2D19600 12Min /
4.26 480RGBx854 TWVA+ 16.7M MIPI HX8363 400Min /
11 1280RGBx120 TN 262K RGB HX8232*5+HX8655*1 300Min /

G4.5 TFT

TWVA+： full viewing angle  •  TF: TransFlective  •  RF: Reflective  •  ULP: low power consumption
Gen Size(Inch) Resolution Display Mode Color Shape IF IC CR Brightness
G4.5 0.96 80RGBx160 TWVA+ 262K Rectangle SPI ST7735 600Min /
1.28 240RGBx240 TWVA+ Circle MCU，RGB，SPI ST77912 500Min 280Min 350Typ
1.3 240RGBx240 TWVA+ Square MCU，RGB，SPI ST7789V 500Min 340Min 510Typ
1.4 320RGBx320 TWVA+ Square MCU，RGB，SPI ST7796S 500Min 320Min 410Typ
1.44 128RGBx128 TN Square MCU，SPI ST7735S 300Min 315Min 395Typ
1.45 240RGBx320 TWVA+ Rectangle MCU，RGB，SPI ST7789V 300Min 330Min 420Typ
1.54 240RGBx240 TWVA+ Square SPI JD9851A 500Min 300Min 380Typ
1.55 320RGBx360 TWVA+ Rectangle MCU，RGB，SPI ST7796S 500Min 400Min 500Typ
1.77 128BGRx160 TN Rectangle MCU，SPI ST7735S 300Min 480Min 600Typ
2.01 240RGBx320 TWVA+ Rectangle MCU，SPI ST7789 600Min /
2.1 480BGRx480 TWVA+ 16.7M Circle RGB，MIPI ST7701S 500Min 200Min 300Typ
2.41 240RGBx320 TN 262K Rectangle MCU，RGB，SPI ST7789V 300Min 240Min 300Typ
2.41 240RGBx320 TWVA+ MCU，RGB，SPI ST7789V 500Min 240Min 300Typ
2.7 960DOTx 240 TN RGB ILI8961 300Min 240Min 300Typ
2.83 240RGBx320 TN MCU，RGB，SPI ST7789V 300Min 200Min 260Typ
2.83 240RGBx320 TWVA+ MCU，RGB，SPI ST7789V 500Min 270Min 340Typ
2.83 480RGBx640 TWVA+ 16.7M RGB，MIPI ST7701S 500Min 300Typ
3 480RGBx720 TWVA+ RGB，MIPI ST7701S 500Min 300Min 350Typ
3.16 288RGBx960 TWVA+ RGB，MIPI ST7701S 500Min 300Min 350Typ
3.5 272RGBx480 TWVA+ MCU，RGB，SPI,MIPI ST7796S 500Min 300Min 350Typ
3.5 320RGBx480 TN 16M MCU，RGB，SPI,MIPI ST7796S 300Min 320Min 400Typ
3.5 320RGBx240 TWVA+ 16.7M RGB ST7272 500Min 240Min 300Typ
3.5 320RGBx480 TWVA+ MONO MCU，RGB，SPI,MIPI ST7796S 500Min 300Min 350Typ
3.97 480RGBx800 TWVA+ 16.7M RGB，MIPI ST7701S 500Min 200Min 270Typ
4.3 480RGBx272 TN 262K RGB ST7282 300Min 360Min 460Typ
4.3 480RGBx272 TN UART ST7282 300Min 360Min 460Typ
4.3 480RGBx800 TWVA+ RGB，MIPI ST7701S 800Min 180Min 220Typ
4.96 800RGBx480 TN RGB HX8264-E*1 +HX8664-B*1 300Min 280Min 350Typ

G5 TFT

TWVA+： full viewing angle  •  TF: TransFlective  •  RF: Reflective  •  ULP: low power consumption
Gen Size(Inch) Resolution Display Mode Color Shape IF IC CR Brightness
Shenwei G5 3.95 480RGBx480 TWVA+  16.7M  Square RGB，MIPI ST7701S 500Min 200Min 300Typ
4.3 480RGBx272  Rectangle RGB, LVDS ST7283/ST7285 280Min 350Typ
5 800RGBx480  RGB, LVDS ST7262 200Min 300Typ
5 720RGBx1280  MIPI ST7703 230Min 300Typ
5.45 480RGBx960  RGB, MIPI ST7701S 280Min 350Typ
5.45 720RGBx1440  MIPI ST7703 200Min 300Typ
5.5 720RGBx1280  MIPI ST7703 200Min 280Typ
6.75 480RGBx1280  RGB, MIPI ST7701S 240Min 310Typ
7 600RGBx1024 MIPI ST7703 260Min 330Typ
7 1024RGBx600  LVDS EK79001 170Min 220Typ
7 800RGBx480  TN  RGB HX8264-D*1 +HX8664-B*1  300Min 950Typ 200Min 270Typ
8 1024RGBx600  TWVA+ LVDS EK79001*1 500Min 850Typ 350Min 440Typ
8 800RGBx1280 TWVA+ MIPI ILI9881C 500Min 900Typ 210Min 260Typ
10.1 1024RGBx600  TN LVDS HX8282-A*1 +HX8696-A*1 300Min 1000Typ 250Min 320Typ
10.1 1024RGBx600  TWVA+ LVDS HX8282-A*1+ HX8696-A*1 700Min 1000Typ /
10.1 1280RGBx800  LVDS RM536*2 500Min 1000Typ 310Min 390Typ
12.1 1280RGBx800  LVDS HX8245-E*4 +HX8695-E*1 500Min 1000Typ 330Min 420Typ
Ren hou G5 8.68 800RGBx1340 LVDS NT36523D 700Min /
11.6 1366RGBx768   TM, NW  EDP HX8876 300Min 200Min 250Typ
